Welded Mesh Rolls & Panels
Welded Wire Mesh
Welded wire mesh is a grid of steel wires electrically welded at every intersection, forming square or rectangular openings that hold their shape when cut. It is supplied in rolls or flat panels.
- Mesh opening
- 1/4" – 2" (6.35 – 50.8 mm)
- Wire diameter
- 0.6 – 2.5 mm (rolls)
- Roll width
- 0.5 – 2.5 m
- Roll length
- 25 / 30 / 50 m
- Format
- Rolls or flat panels
- Finish
- Galvanized or PVC coated
Galvanized before or after welding, or PVC coated. Custom mesh, wire and roll sizes available.
What is welded wire mesh?

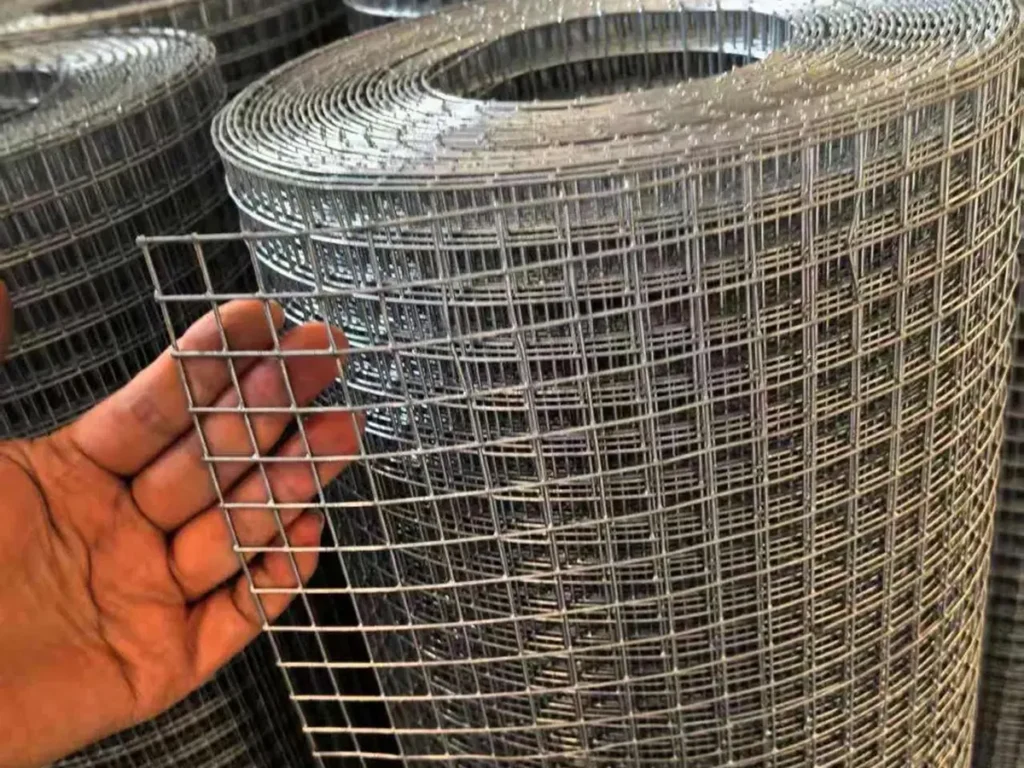

Welded wire mesh is made by laying straight line wires and cross wires in a grid and resistance-welding every crossing point. Because each joint is fixed, the mesh keeps its openings even when it is cut to size, which makes it easy to fabricate into cages, guards and partitions.

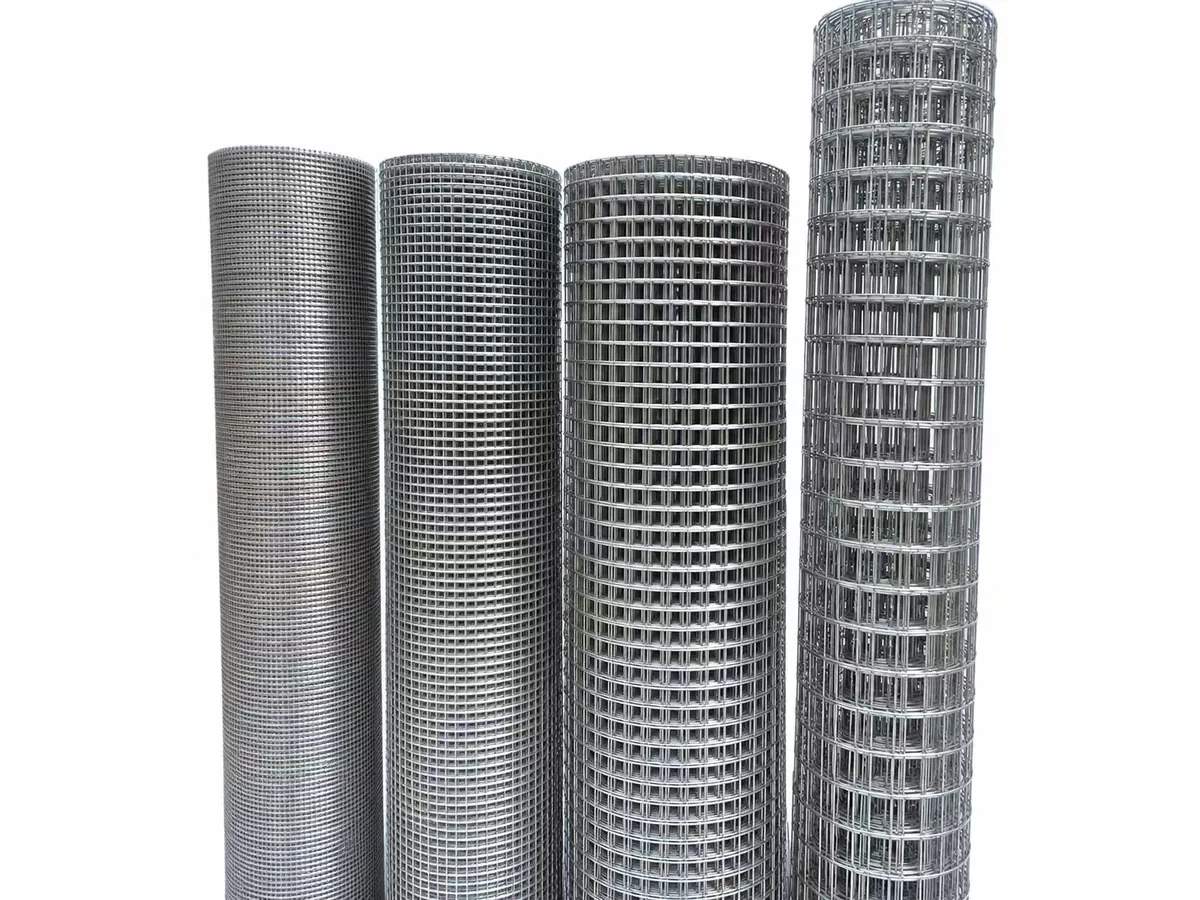

Light mesh with 0.6–2.5 mm wire is supplied in rolls for fencing, animal enclosures and construction. Heavier wire from 2 mm to 6 mm is made into flat panels for guards, shelving and building works.

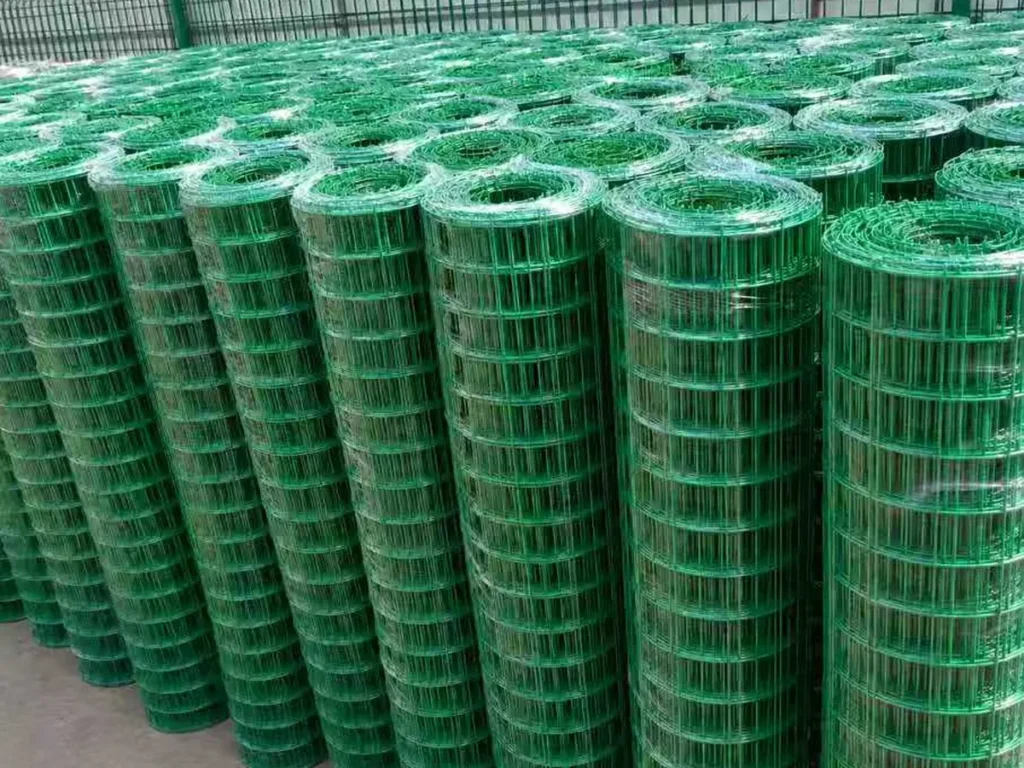

The finish depends on use: galvanized after welding gives the best corrosion protection at the joints, galvanized before welding is more economical, and PVC coating adds colour and extra protection.
Tap the image to view full size
Welded Wire Mesh Specifications
Standard configurations for rolls and panels.
| Item | Standard specification |
|---|---|
| Mesh opening (rolls) | 1/4", 3/8", 1/2", 5/8", 3/4", 1", 1/2" × 1", 1" × 2", 1-1/2", 2" |

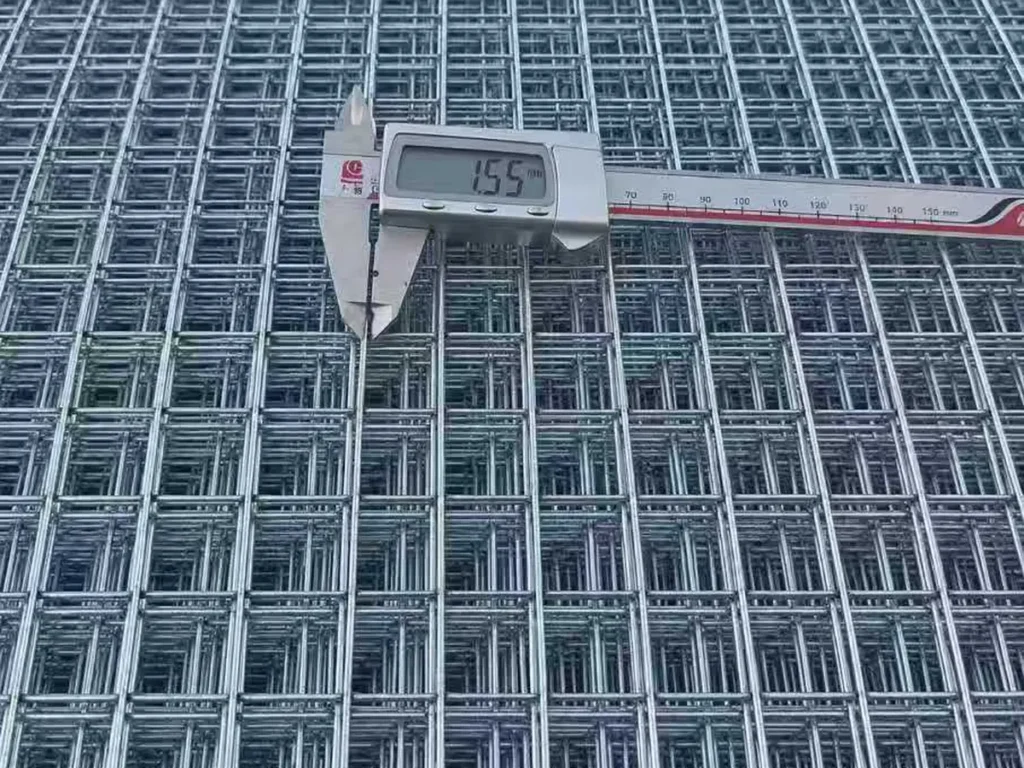

| Wire diameter (rolls) | 0.6–2.5 mm (BWG 24–12) |
| Roll width | 0.5–2.5 m; common 0.9 / 1.0 / 1.2 / 1.5 / 1.8 m |
| Roll length | 25 / 30 / 50 m |
| Panel mesh | 50 × 50, 50 × 100, 75 × 75, 100 × 100 mm and more |
| Panel wire diameter | 2.0–6.0 mm |
| Panel size | 1 × 2 m, 1.2 × 2.4 m, 2 × 3 m; custom sizes |
| Material | Low-carbon steel wire; stainless steel 304 / 316 available |
| Finish | Electro-galvanized or hot-dip galvanized, before or after welding; PVC coated |
| PVC colours | Green, black; other colours on request |

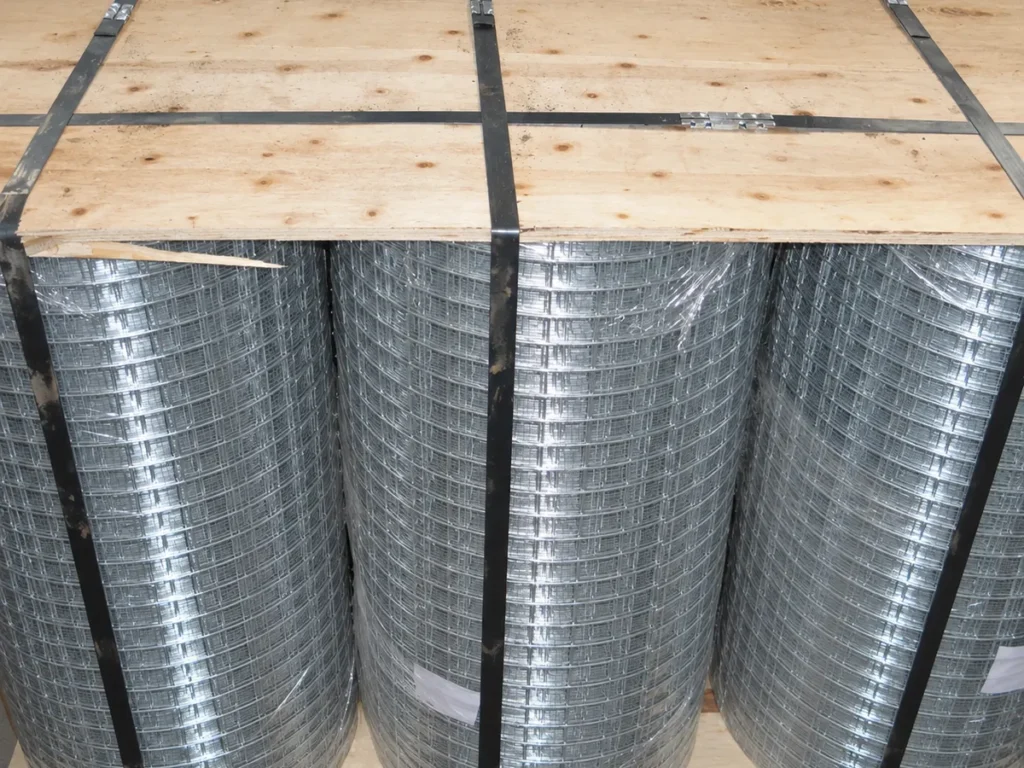

| Packing | Rolls wrapped in waterproof paper or plastic film, on pallets; panels on steel pallets; custom packing on request |
Custom mesh openings, wire diameters, roll widths and lengths, panel sizes, finishes and packing are available. Send your mesh size, wire diameter, quantity and application for a quotation.
Applications

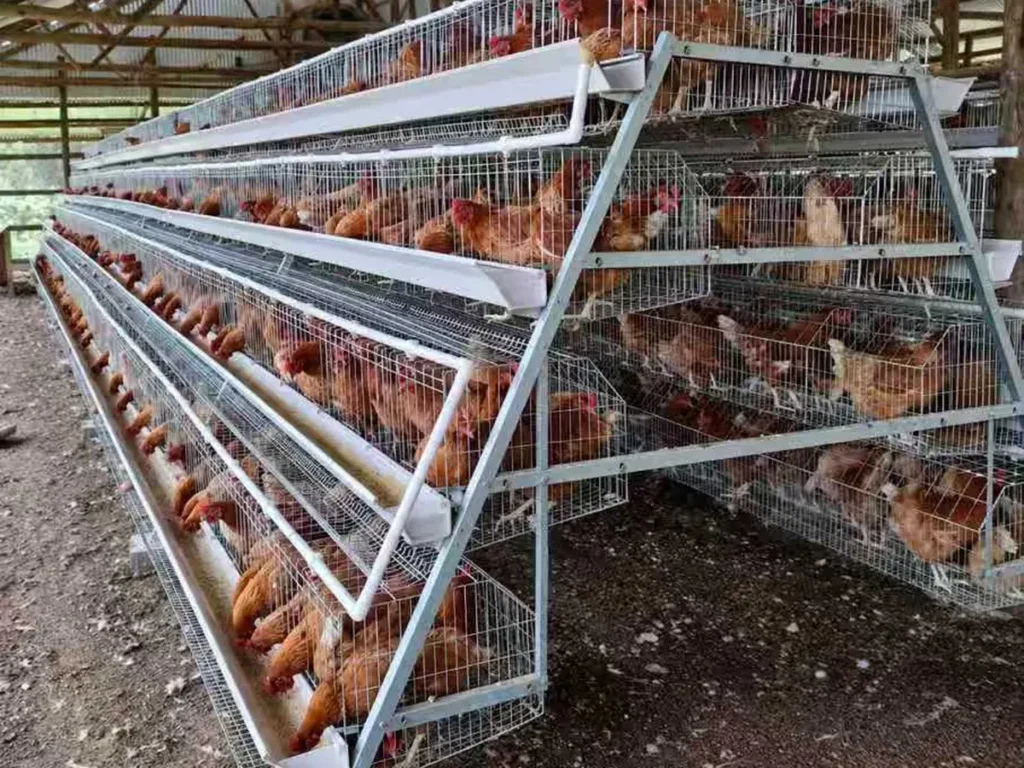

Animal cages & enclosures
Rigid openings for rabbit, bird and pet cages and kennels.
Construction & plastering
Mesh for plaster reinforcement, insulation fixing and concrete crack control.
Guards, shelving & partitions
Welded panels for machine guards, storage shelves and partitions.
Frequently Asked Questions
What is the difference between galvanized before and after welding?
Galvanized after welding coats the welded joints as well, giving better corrosion protection. Galvanized before welding uses pre-coated wire and is more economical for indoor or light use.
How is the mesh opening measured?

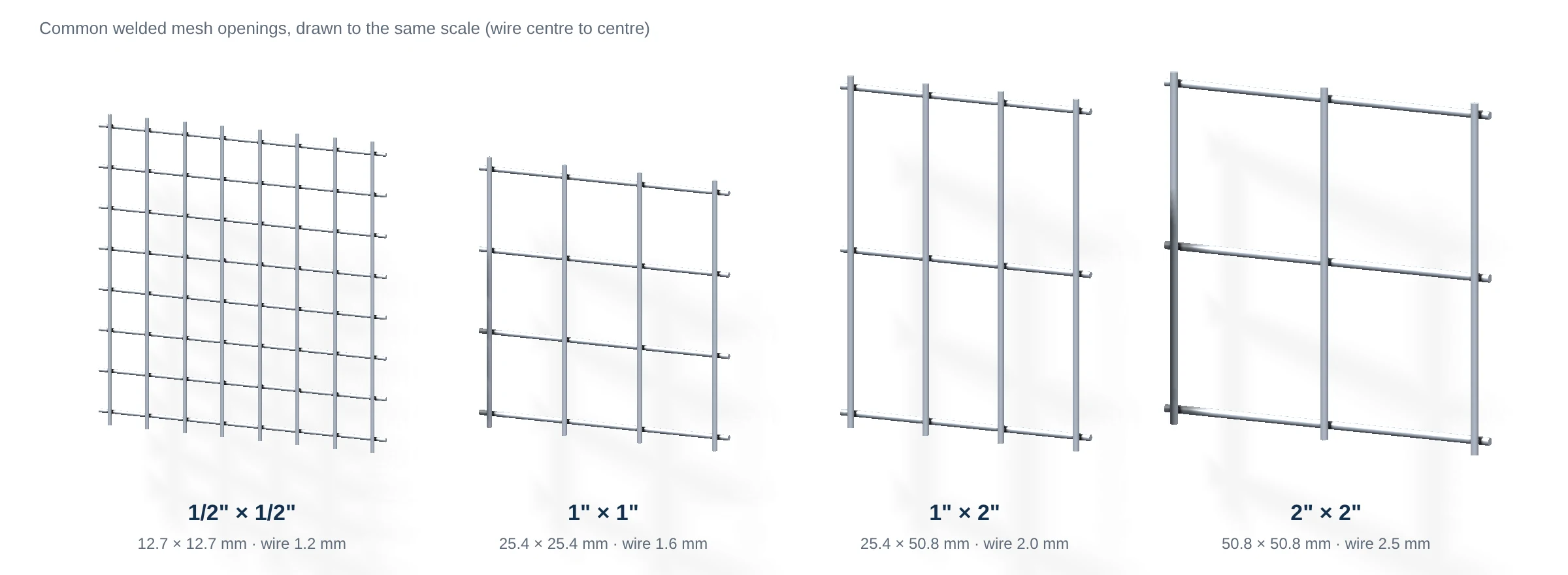

Mesh opening is usually given as the distance between wire centres, in inches or millimetres. For example, 1/2" mesh means wires spaced 12.7 mm apart.
What is BWG?
BWG (Birmingham Wire Gauge) is a traditional wire size system. A higher number means a thinner wire; BWG 19 is about 1.0 mm. Please also state the size in millimetres when ordering.
Can you supply stainless steel welded mesh?
Yes. Welded mesh can be made from 304 or 316 stainless steel wire for food, chemical and marine uses.
What is the difference between rolls and panels?
Rolls use lighter wire and are flexible enough to roll up for long runs. Panels use heavier wire, stay flat and rigid, and are cut to fixed sizes.
What information do you need for a quotation?
Mesh opening, wire diameter, roll width and length or panel size, finish, quantity, and the destination port.
