High-Security Fence
Steel Palisade Fence
Steel palisade fence is a high-security fence made of vertical cold-rolled steel pales bolted to horizontal angle rails, with pointed pale tops that deter climbing.
- Pale profile
- W section or D section
- Pale thickness
- 2.0 – 4.0 mm
- Fence height
- 1.8 – 3.0 m
- Bay width
- 2.75 m
- Posts
- I-section steel
- Finish
- Galvanized or powder coated
Supplied as complete bays with pales, rails, posts and security fixings. Custom heights and RAL colours available.
What is steel palisade fence?
Palisade fence is built from vertical steel pales fixed to two or three horizontal rails, which are bolted to steel posts. The folded W or D profile makes each pale stiff, and the pointed tops make the fence hard to climb over.
W section pales are the most common choice for general and industrial sites. D section pales use thicker steel and a rounded profile for higher security. Each pale is fixed with security bolts or rivets so it cannot be removed from outside.

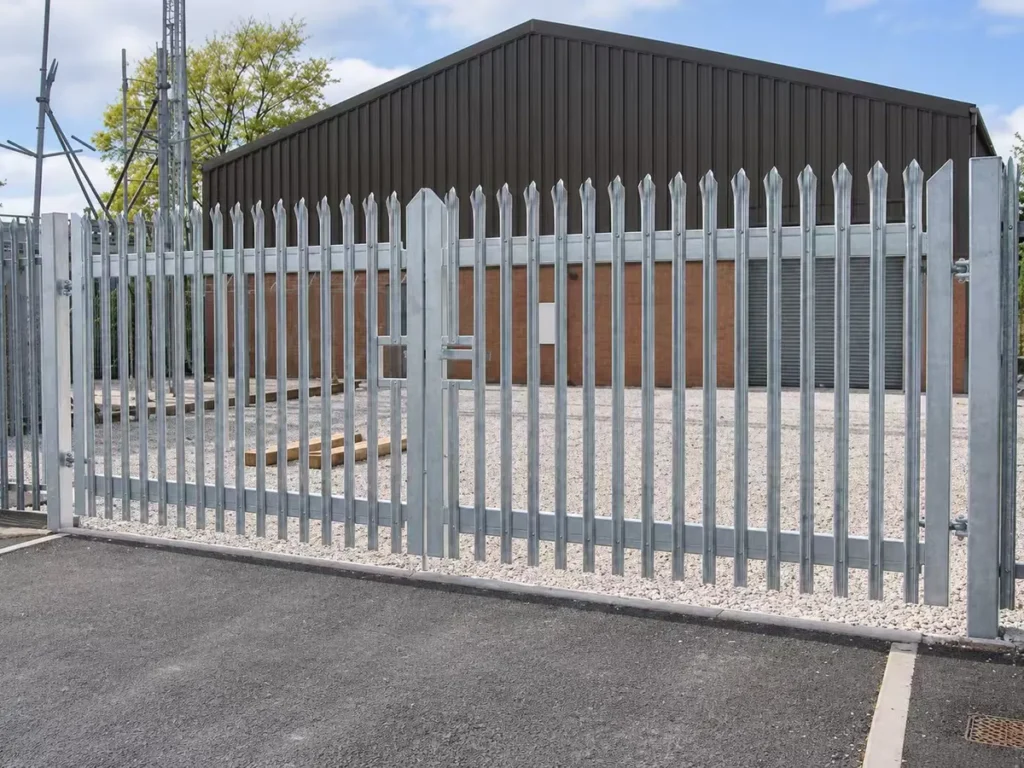

Palisade fence is widely used where a strong, visible deterrent is needed. All parts are hot-dip galvanized, with optional polyester powder coating.
Tap the image to view full size
Steel Palisade Fence Specifications
Standard configuration for pales, rails, posts and fixings.
| Item | Standard specification |
|---|---|

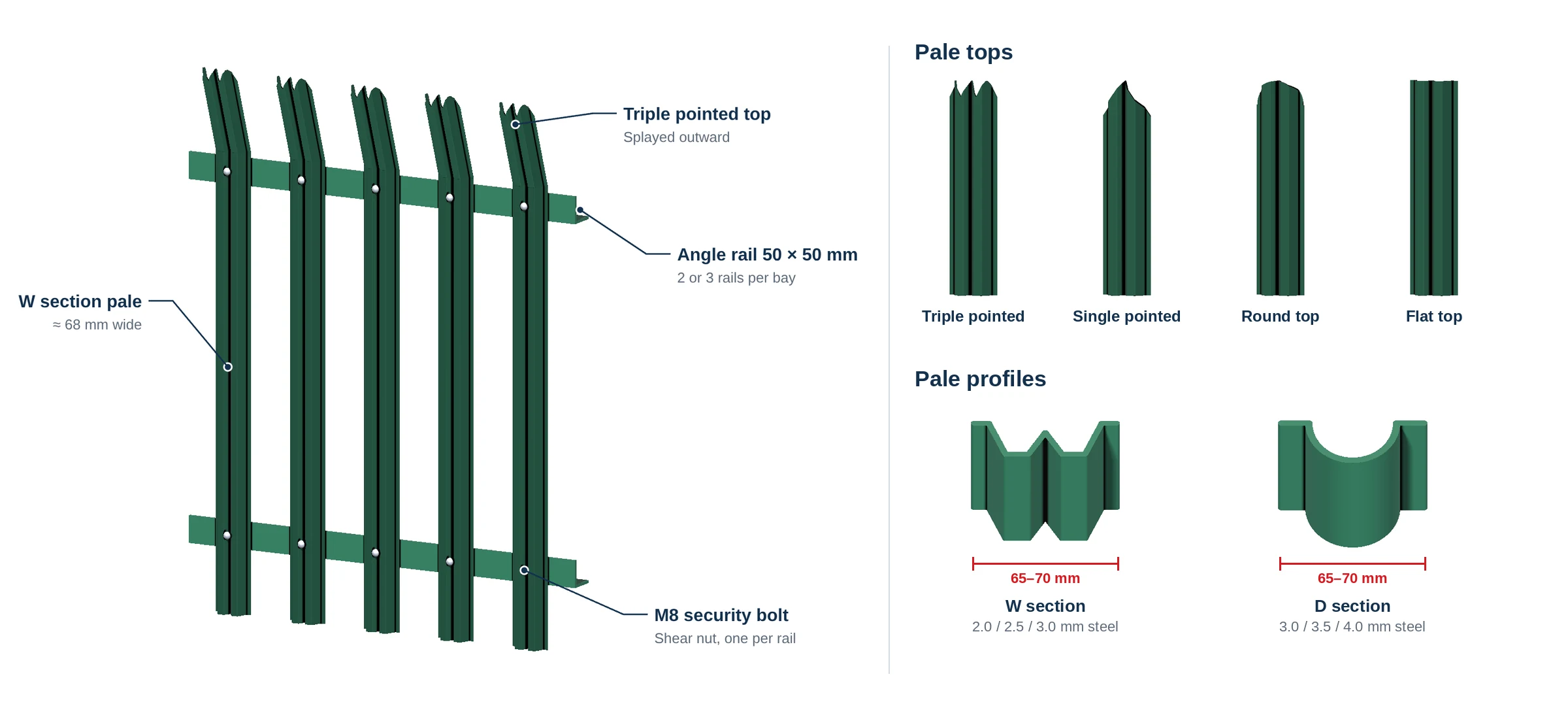

| Pale profile | W section or D section, approx. 65–70 mm wide |
| Pale thickness | W section 2.0 / 2.5 / 3.0 mm; D section 3.0 / 3.5 / 4.0 mm |
| Fence height | 1800 / 2100 / 2400 / 2700 / 3000 mm |
| Bay width | 2750 mm post centres |
| Pale top | Triple pointed and splayed; single pointed; round top; flat top |
| Rails | Steel angle 40 × 40 / 45 × 45 / 50 × 50 mm by fence height; 2 or 3 rails per bay |
| Posts | I-section (RSJ) 102 × 44 mm; 127 × 76 mm for higher security; square tube posts available |
| Fixings | M8 galvanized security bolts with shear nuts, or rivets |

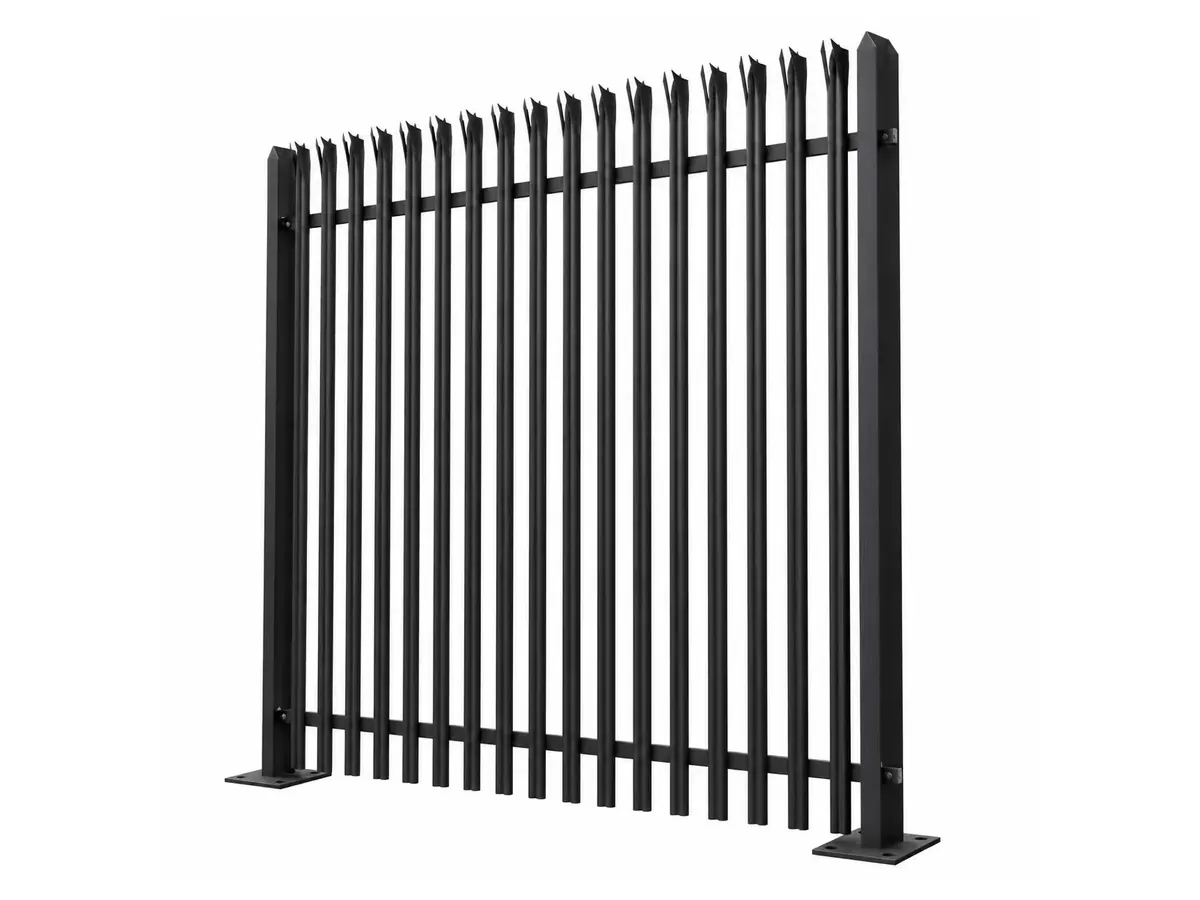

| Installation | Posts set in concrete or bolted on base plates |
| Surface finish | Hot-dip galvanized; galvanized + polyester powder coated |
| Standard colours | Green RAL 6005, black RAL 9005; other RAL colours on request |

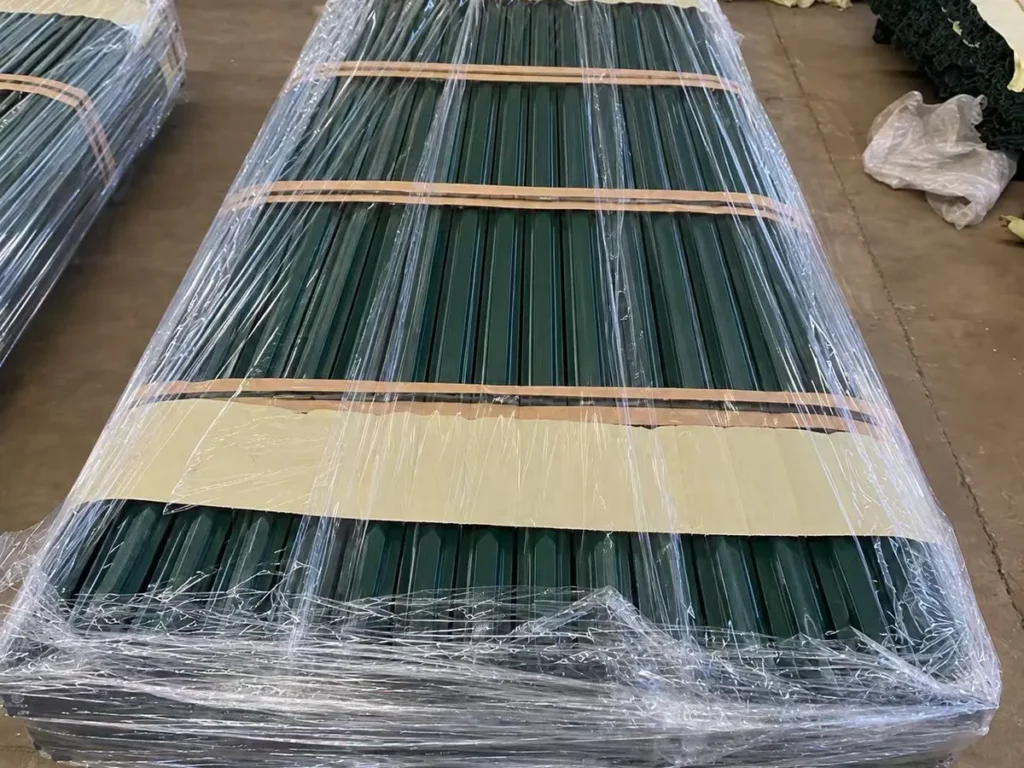

| Packing | Pales and rails bundled with steel strapping; posts bundled; fixings in cartons; custom packing on request |
Custom heights, pale profiles and thicknesses, pale tops, colours and packing are available. Send your fence length, height and site layout for a quotation.
Applications

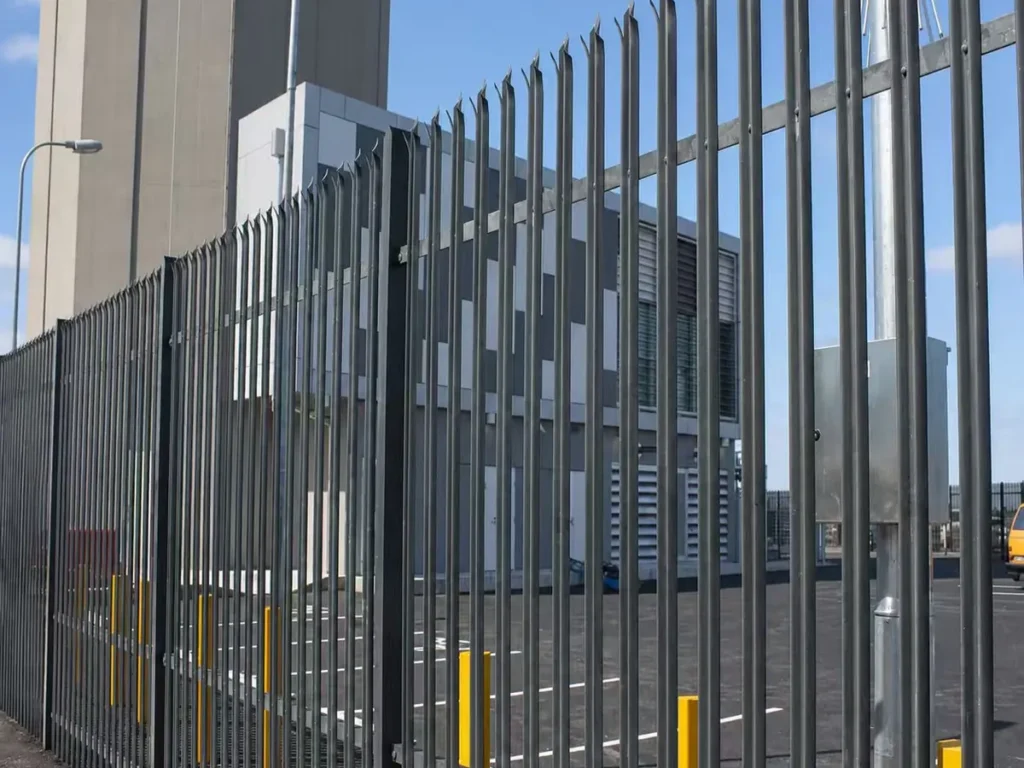

Commercial premises
Strong boundaries for warehouses, car parks and retail sites.
Schools & public buildings
Durable, hard-to-climb fencing for schools and civic sites.
Transport infrastructure
Security fencing for rail, ports and highways depots.
Frequently Asked Questions
What is the difference between W and D section pales?
W section pales have a folded W-shaped profile and are the standard choice. D section pales have a rounded profile in thicker steel for higher security.
Which pale top should I choose?

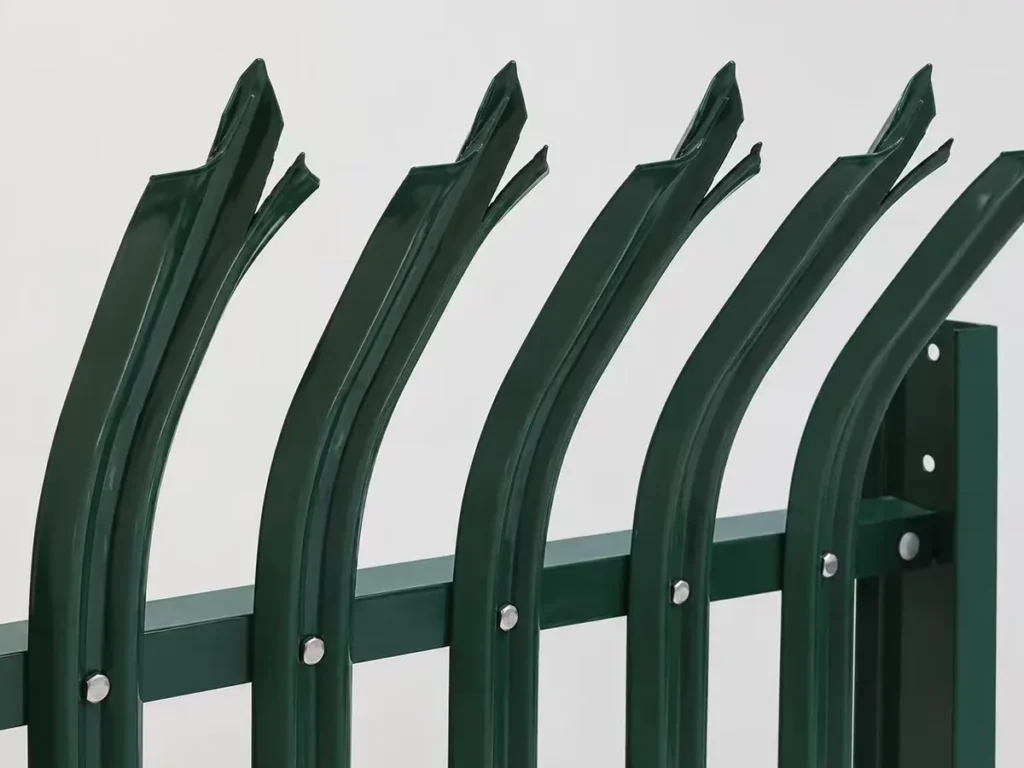

Triple pointed and splayed tops give the strongest anti-climb deterrent. Round or flat tops suit sites near public walkways.
How are the pales fixed?

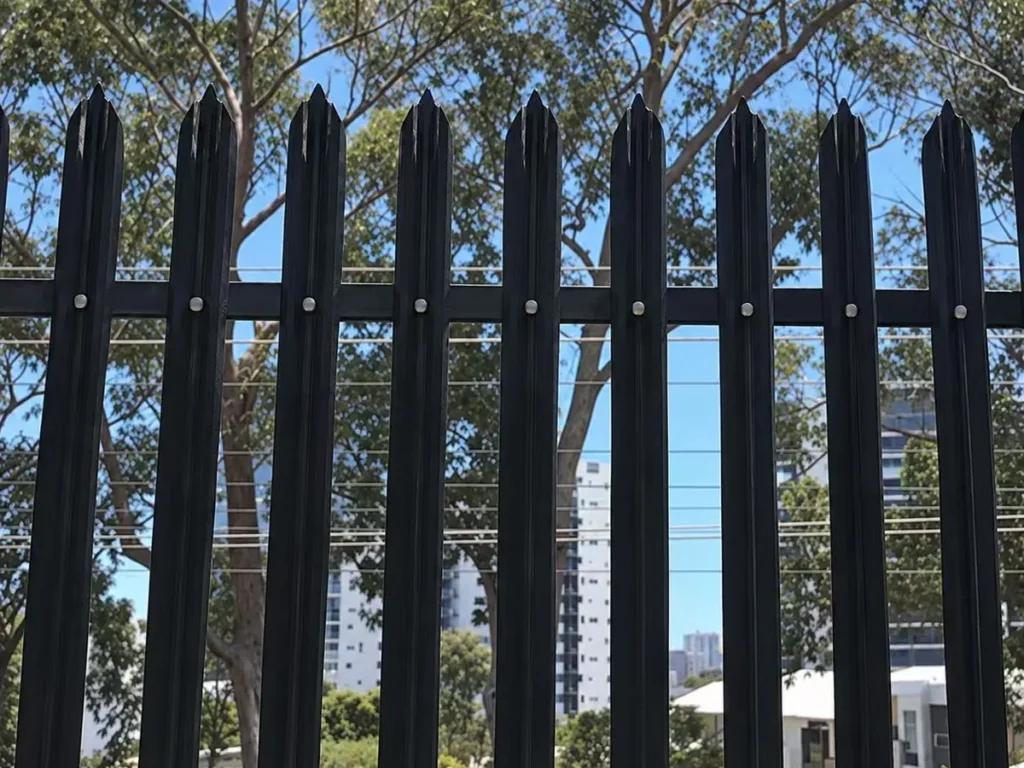

Each pale is fixed to the rails with security bolts and shear nuts, or with rivets, so it cannot be removed from outside.
Is palisade fence supplied assembled?
It is supplied as components — pales, rails, posts and fixings — and assembled on site bay by bay.
Can I choose the height and colour?
Yes. Fence height, pale profile, pale top and RAL colour can be made to your specification.
What information do you need for a quotation?
Fence height, total length, pale profile and top, finish and colour, and the number of corners and gates.
