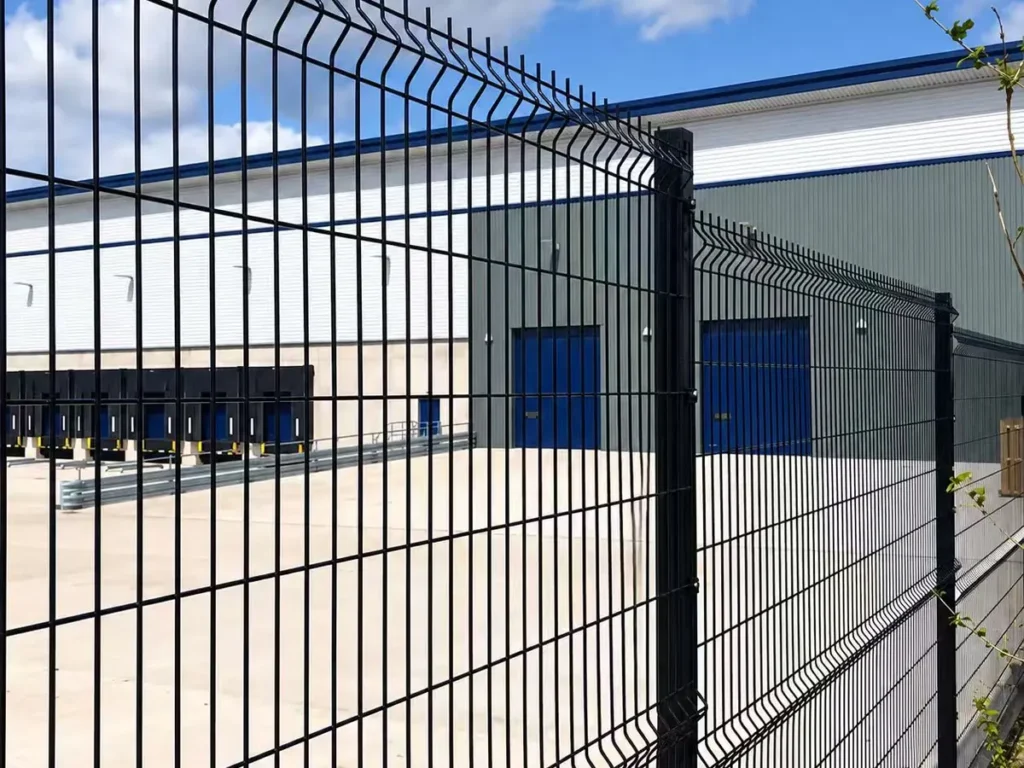

Factories & commercial premises
Clear, durable boundaries for industrial sites, warehouses and offices.
Welded Panel Fence
3D Welded Mesh Fence

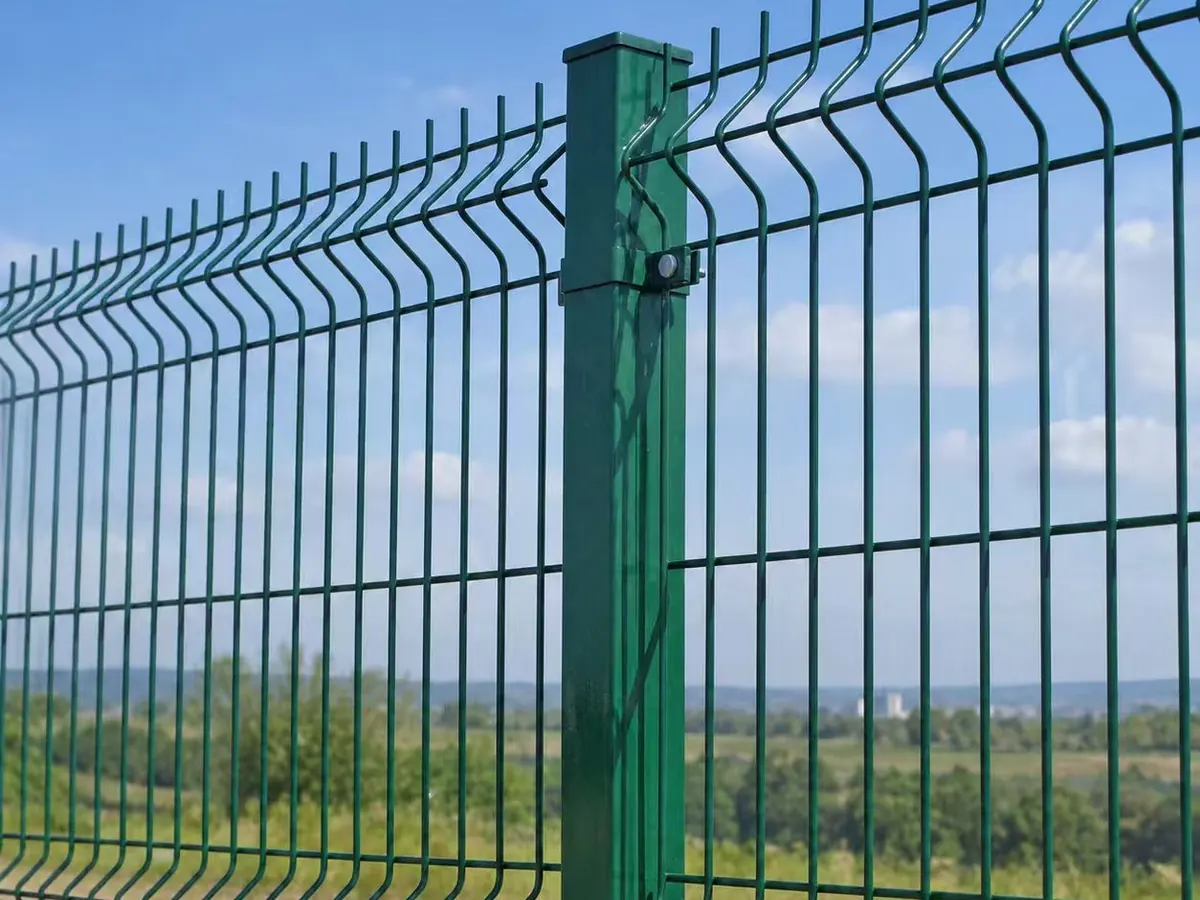

3D welded mesh fence, also known as V-bend or curved welded mesh fence, is a welded steel panel fence with horizontal V-shaped bends that stiffen the panel while keeping an open, clear view.
- Mesh aperture
- 50 × 200 mm
- Wire diameter
- 4.0 / 5.0 mm
- Panel height
- 0.63 – 2.43 m
- Panel width
- 2.5 m
- V-bends
- 2 – 4 per panel
- Finish
- Galvanized + powder coated
Panels supplied alone or with posts, clips and caps. Custom sizes and RAL colours available.
What is 3D welded mesh fence?

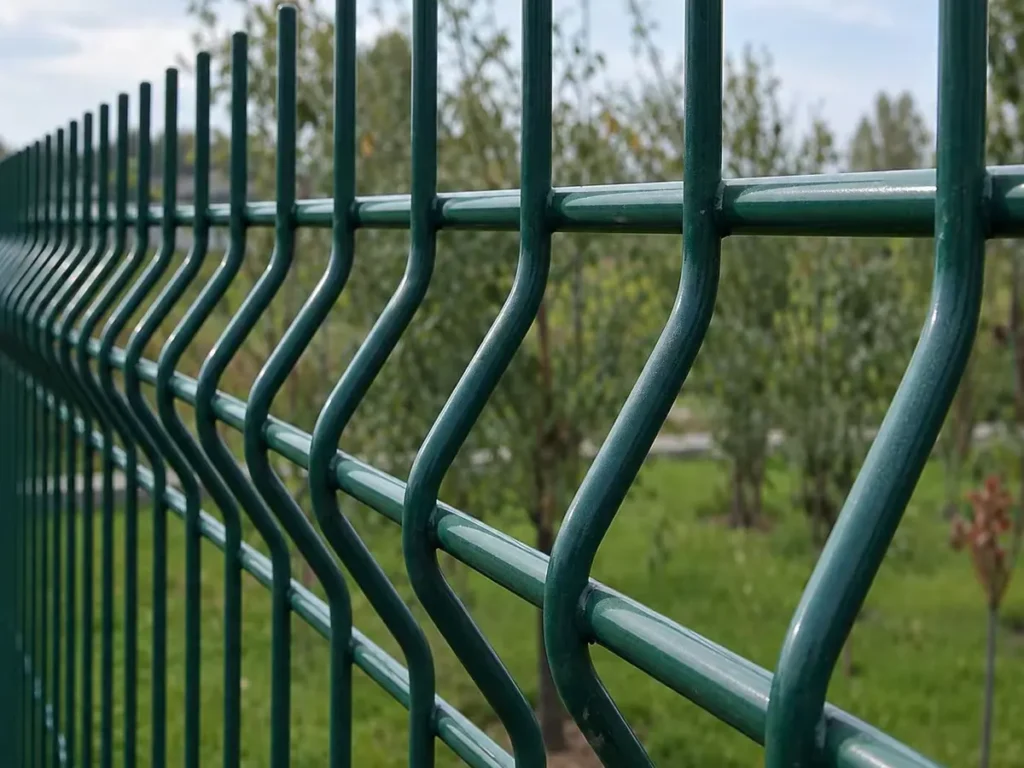

3D welded mesh fence is made from straight steel wires welded into a rigid panel, then pressed with horizontal V-shaped bends. The bends add stiffness without extra weight, so a 4 mm or 5 mm wire panel stays straight across a 2.5 m span.

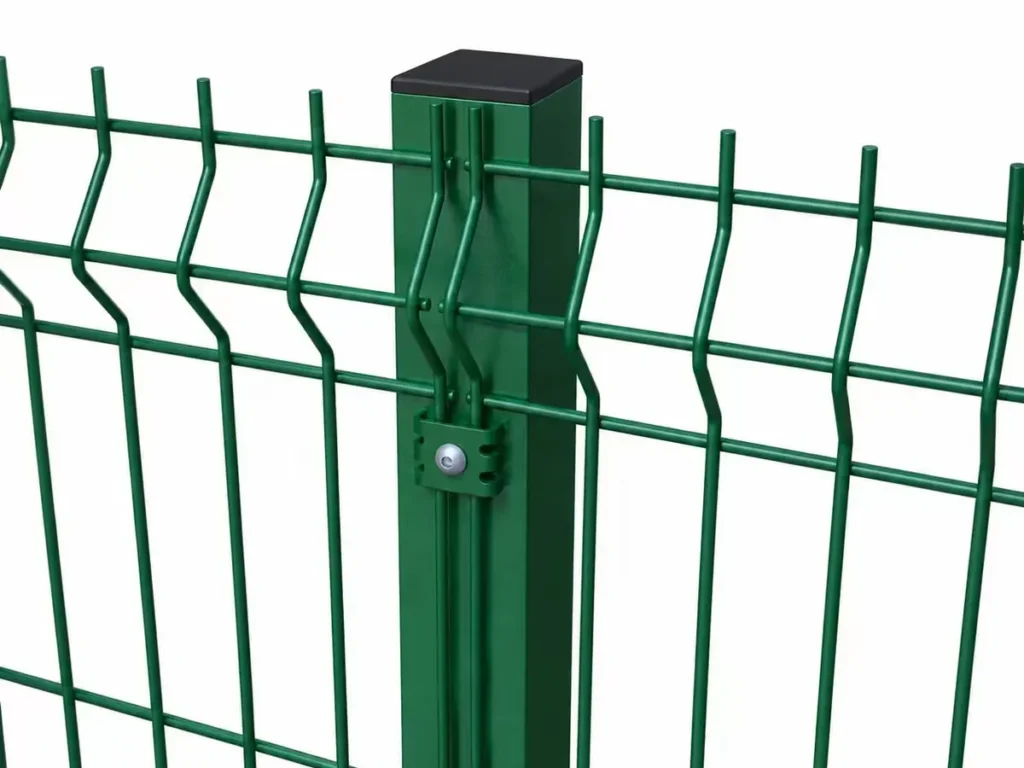

Panels are fixed to square, rectangular, peach-shaped or round posts with clips or clamps. Panel height sets the number of bends: lower panels usually have two, taller panels three or four.
It is one of the most widely used boundary fences for factories, gardens, schools and public areas. We supply panels alone or as complete systems in galvanized and powder-coated finishes.
Tap the image to view full size
3D Welded Mesh Fence Specifications
Standard configuration for panels, posts and fittings.
| Item | Standard specification |
|---|---|
| Mesh aperture | 50 × 200 mm standard; 50 × 100, 55 × 200, 75 × 150 mm available |
| Wire diameter | 4.0 mm or 5.0 mm (3.5–6.0 mm available) |
| Panel height | 630 / 830 / 1030 / 1230 / 1530 / 1730 / 1830 / 2030 / 2230 / 2430 mm |
| Panel width | 2500 mm (2000 / 3000 mm available) |

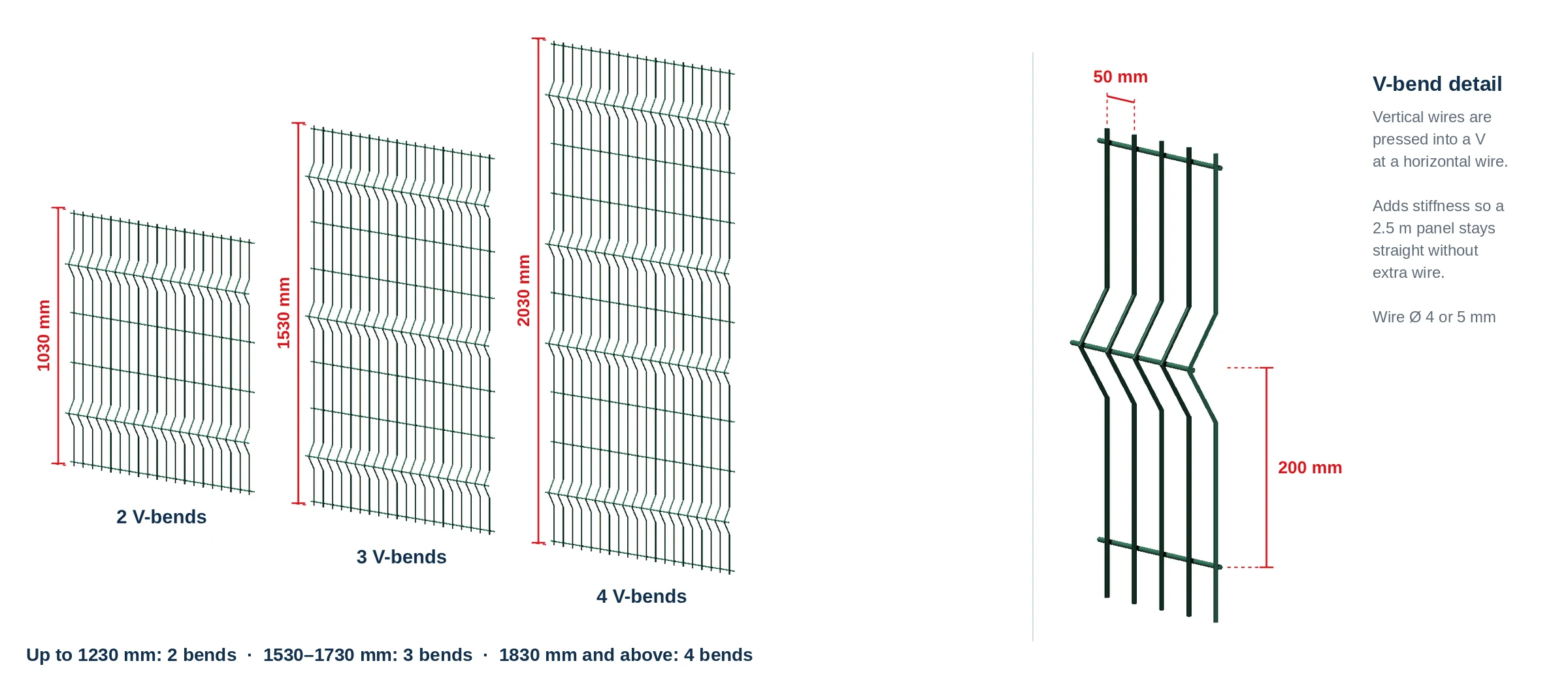

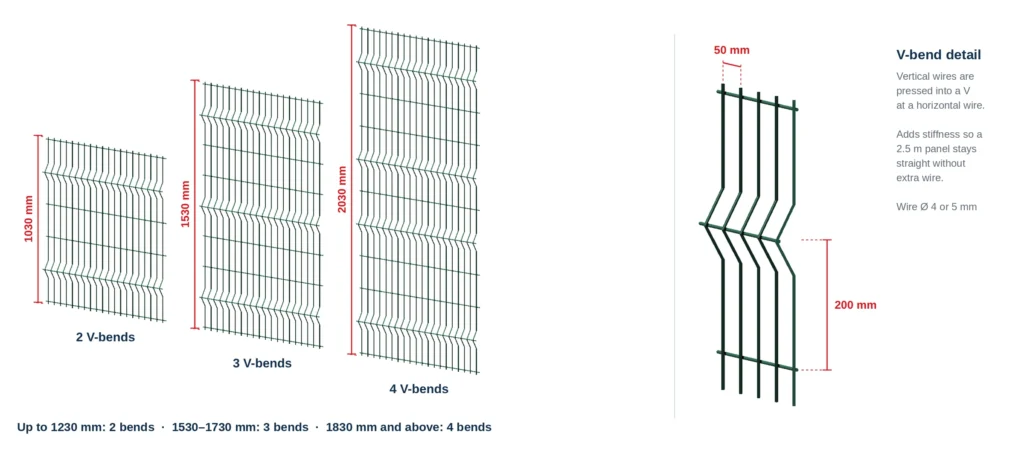

| V-bends | 2 bends up to 1230 mm; 3 bends 1530–1730 mm; 4 bends 1830 mm and above |
| Posts | Rectangular 60 × 40 / 80 × 60 mm; square 60 × 60 mm; peach post 50 × 70 / 70 × 100 mm; round Ø48 / Ø60 mm |
| Post length | Fence height + 500–600 mm for concrete footing; shorter with base plates |
| Fixings | Spider clips, flat-bar clamps or peach-post locking; stainless or galvanized bolts |
| Post caps | Plastic or metal caps |
| Installation | Posts set in concrete or bolted on base plates |
| Surface finish | Hot-dip galvanized; galvanized + polyester powder coated; galvanized + PVC coated |
| Standard colours | Green RAL 6005, anthracite RAL 7016, black RAL 9005; other RAL colours on request |

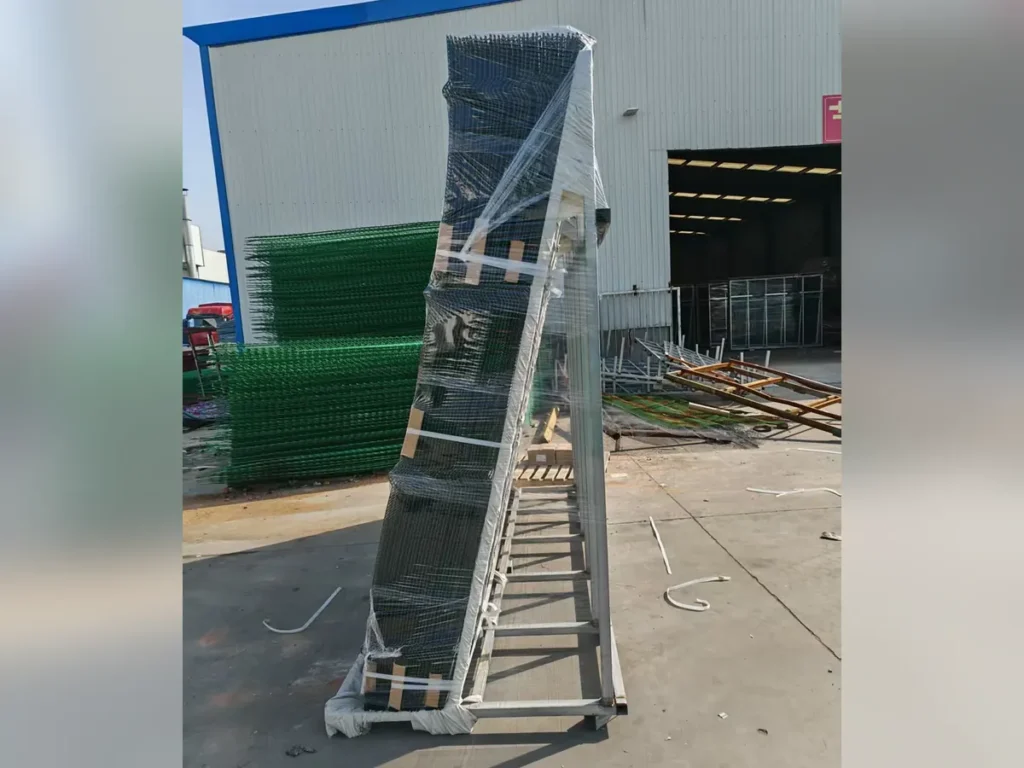

| Packing | Panels on steel or wooden pallets, film-wrapped; posts bundled; fittings in cartons; custom packing on request |
Custom panel heights and widths, mesh sizes, wire diameters, number of bends, post types, colours and packing are available. Send your fence length, height and site layout for a quotation.
Applications

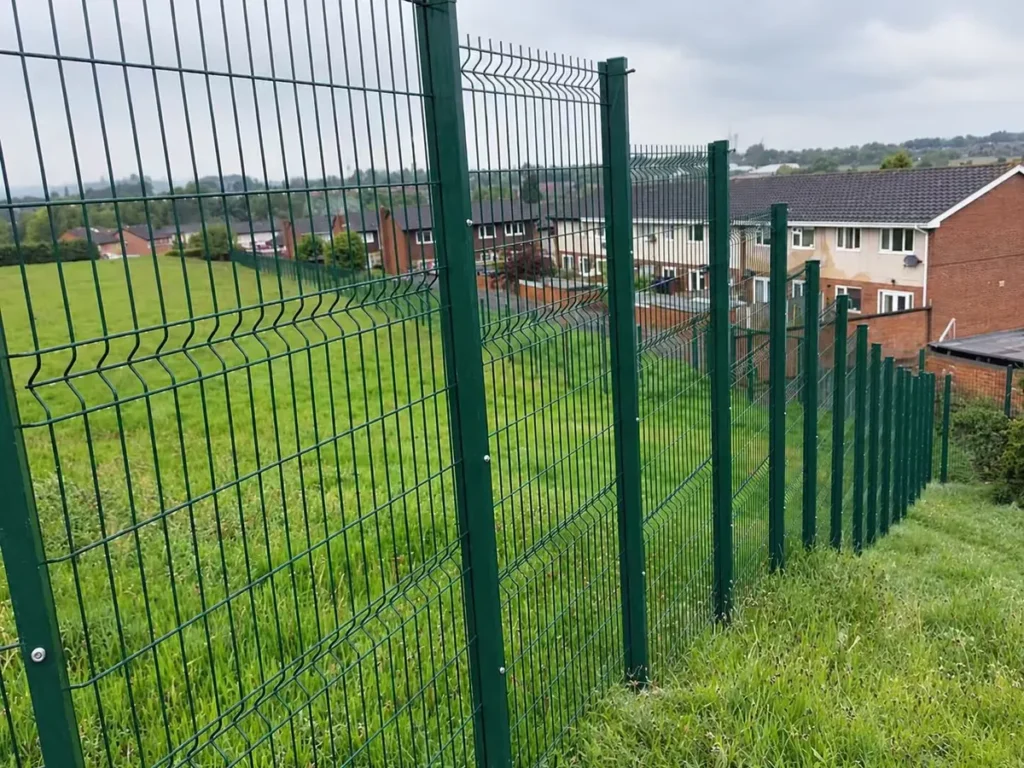

Gardens & residential boundaries
Colour-coated panels for homes, villas and landscaped areas.
Schools & public areas
Perimeter fencing for schools, parks and public buildings.
Roads & infrastructure
Boundary fencing along roads, railways and utility sites.
Frequently Asked Questions
Why is it called a 3D fence?
The horizontal V-shaped bends give the flat welded panel a three-dimensional profile. The bends make the panel stiffer and more resistant to impact.
How many bends does a panel have?
It depends on the height. Panels up to about 1.2 m usually have two bends, 1.5–1.7 m panels three, and 1.8 m and taller panels four.
Which posts can be used?
Rectangular, square, peach-shaped and round posts. Peach posts allow quick installation without separate clips; square and rectangular posts use clips or clamps.
What is the difference between 3D fence and 358 fence?
3D fence uses 50 × 200 mm openings for general boundaries. 358 fence has a much tighter 76.2 × 12.7 mm mesh for high-security sites.
Can I order panels without posts?
Yes. We supply panels only, or complete systems with posts, fixings and caps.
What information do you need for a quotation?
Fence height, total length, wire diameter, finish and colour, post type and installation method, and the number of corners and gates.
