Construction sites
Site boundaries that can be moved as the work progresses.
Portable Fence
Temporary Fence Panels
Temporary fence, also known as mobile or construction site fence, is a free-standing system of welded mesh panels in steel tube frames, set in portable feet and joined with clamps, so it can be installed and moved without digging.
- Panel size
- 2.4 × 2.1 m / 3.5 × 2.0 m
- Frame tube
- Ø32 – Ø40 mm
- Mesh aperture
- 60 × 150 mm
- Wire diameter
- 3.0 – 4.0 mm
- Base
- Plastic or concrete feet
- Finish
- Hot-dip galvanized
Panels supplied with feet, clamps and braces. Australian, European and North American sizes available.
What is temporary fence?

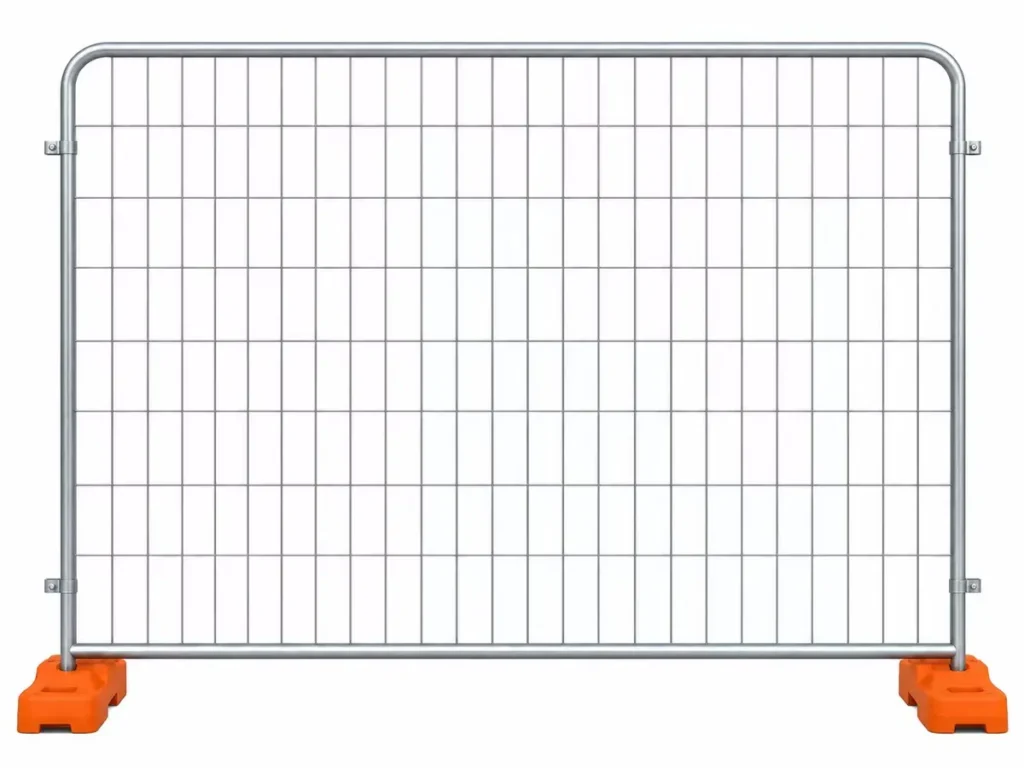

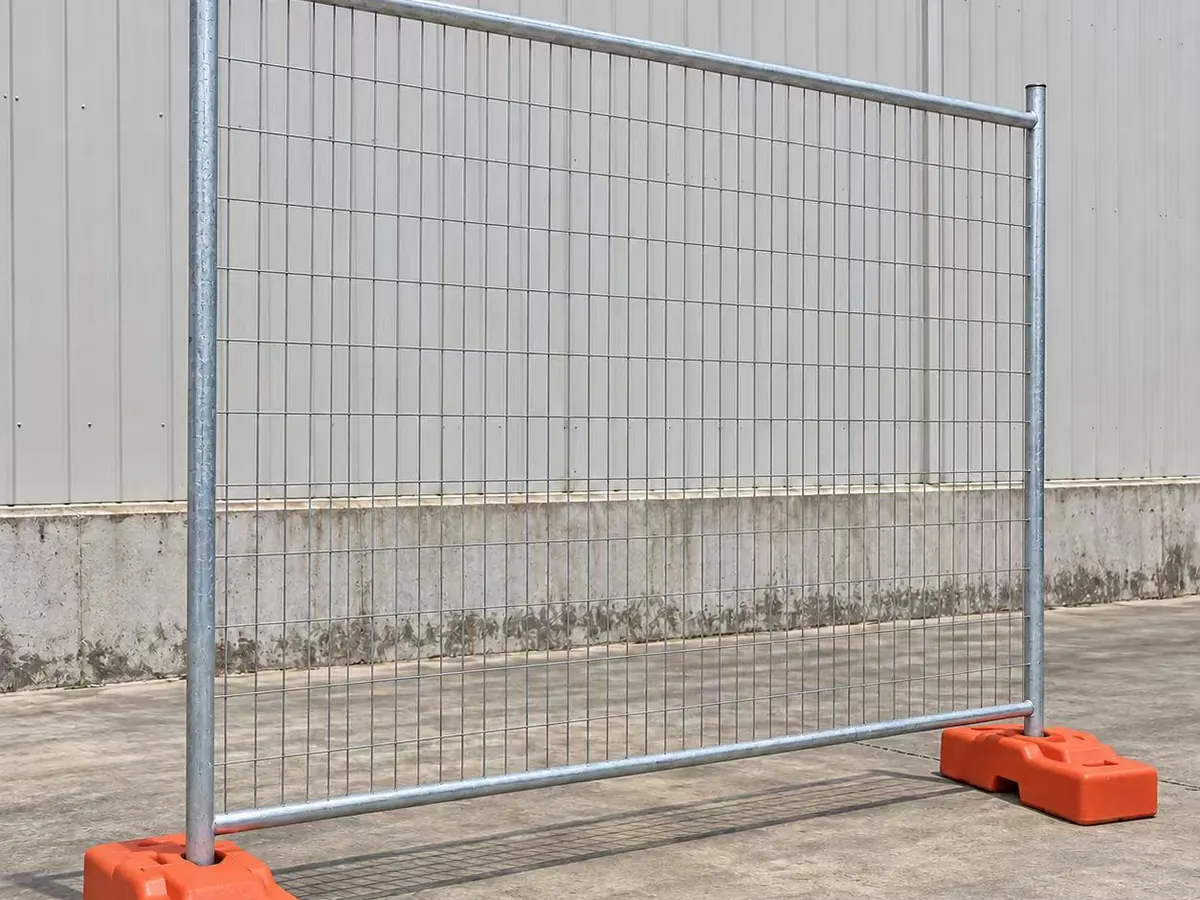

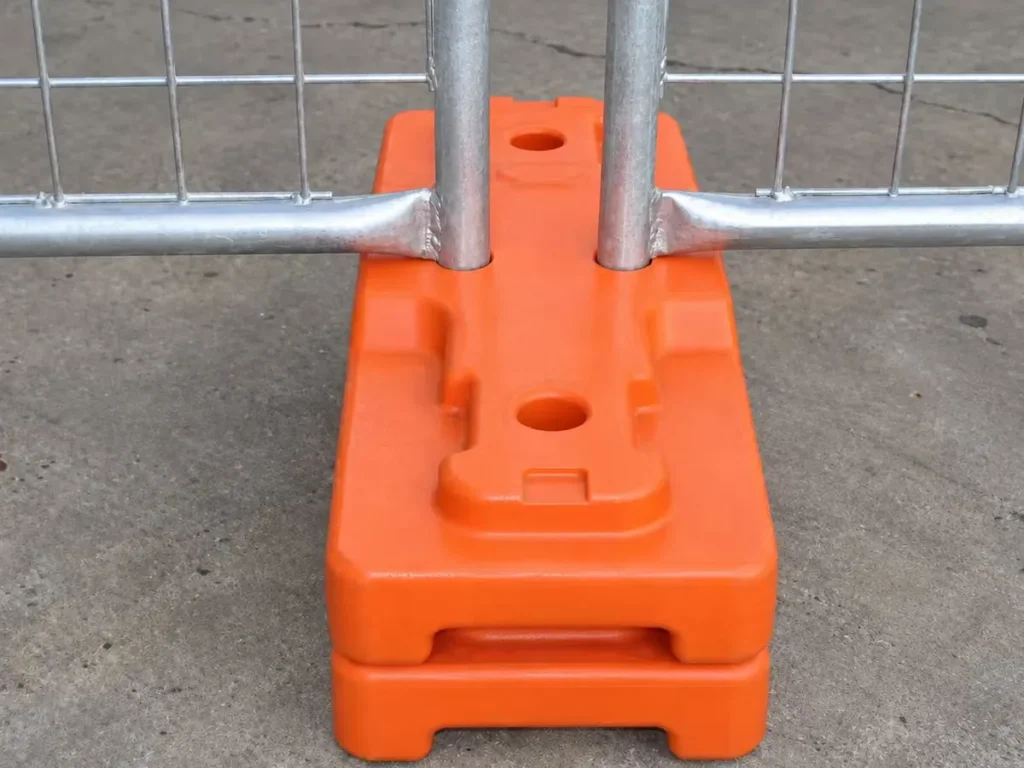

Each panel is a welded wire mesh fixed inside a round or square steel tube frame. The frame legs sit in heavy plastic or concrete feet, and neighbouring panels are joined with clamps, so a fence line can be set up quickly on any firm surface.

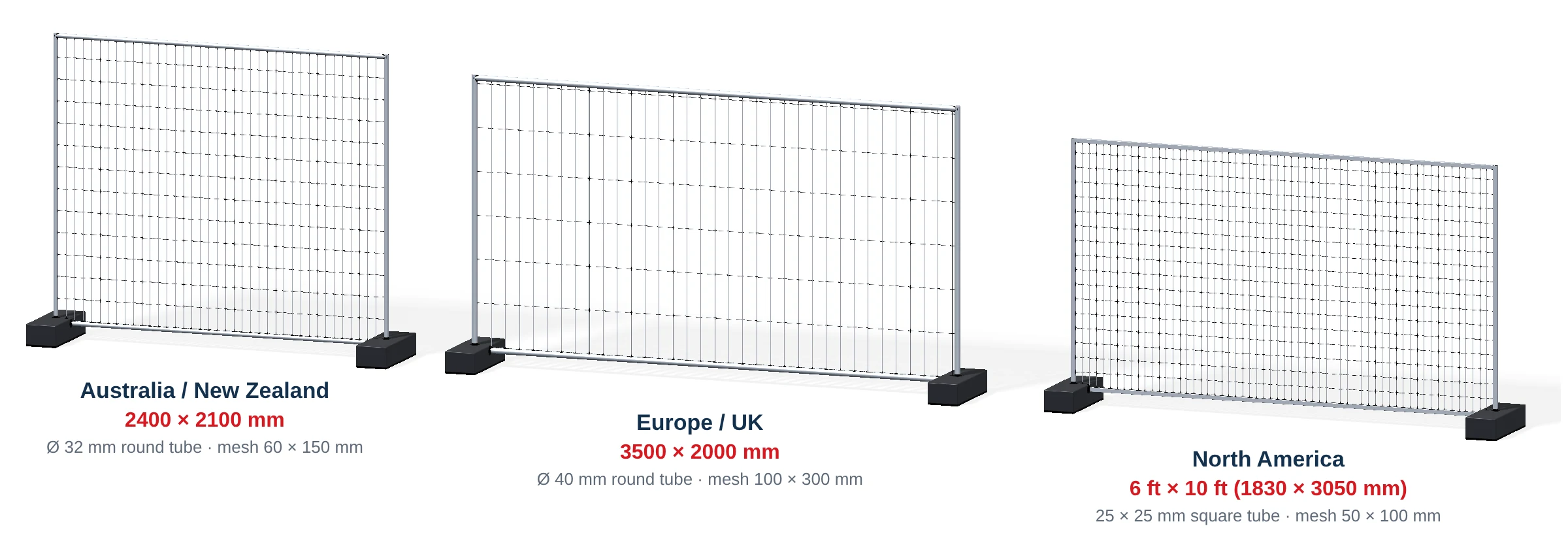

Panel sizes follow the main markets: 2.4 × 2.1 m panels are standard in Australia and New Zealand, 3.5 × 2.0 m mobile fence is common in Europe and the UK, and 6 ft × 10 ft panels are used in North America.
Panels are hot-dip galvanized for long reuse on construction sites, events and crowd control. Braces, gates and shade cloth are available.
Tap the image to view full size
Temporary Fence Panel Specifications
Standard configurations by market.
| Item | Standard specification |
|---|---|
| Australia / New Zealand type | Panel 2400 × 2100 mm (2400 × 1800 mm available); frame tube Ø32 mm; mesh 60 × 150 mm; wire 3.0–4.0 mm |
| Europe / UK type | Panel 3500 × 2000 mm; frame tube Ø40 mm; mesh 100 × 300 mm or anti-climb 75 × 225 mm; wire 3.0–4.0 mm |
| North America type | Panel 6 ft × 10 ft (1830 × 3050 mm); square tube 25 × 25 / 30 × 30 mm frame; mesh 50 × 100 mm; wire 3.0–4.0 mm |
| Frame wall thickness | 1.4–2.0 mm |
| Feet | Plastic feet (water or sand filled) or concrete feet |
| Clamps | Couplers or clamps, 2 per joint; anti-tamper clamps available |

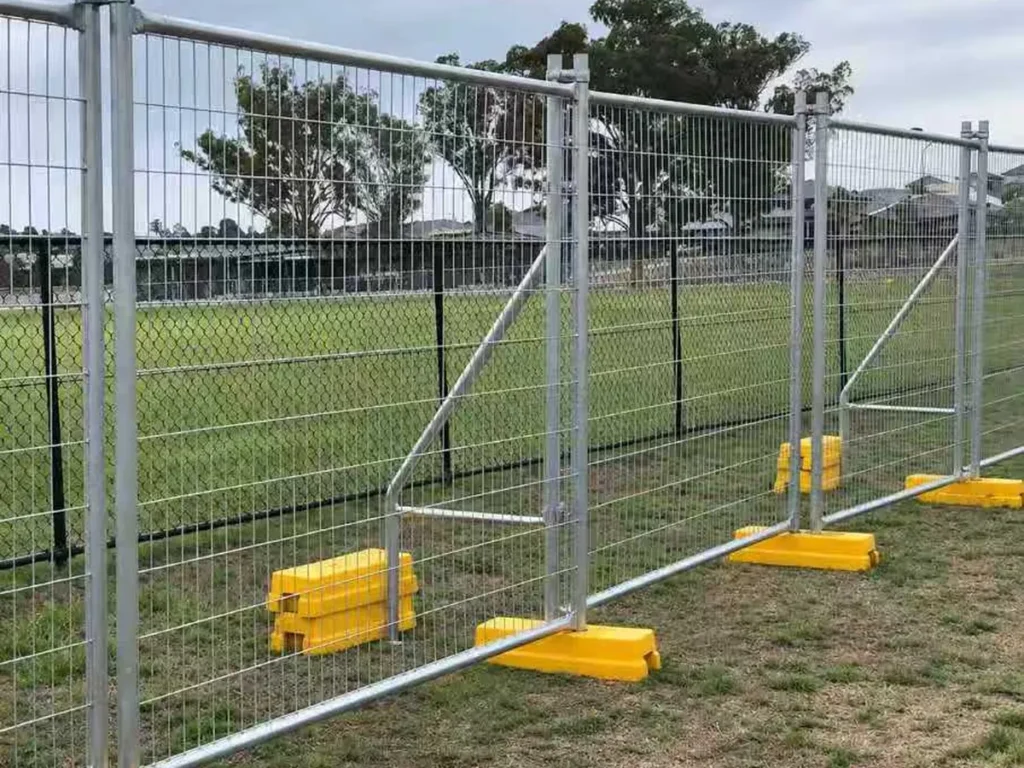

| Bracing | Stay braces with extra feet for windy or exposed sites |
| Gates | Walk-through and vehicle gates to match the panels |
| Surface finish | Hot-dip galvanized after welding; powder coated or PVC coated available |
| Packing | Panels stacked on steel pallets with strapping; feet and clamps packed separately; custom packing on request |
Custom panel sizes, frame tubes, mesh and wire, feet and colours are available. Send your fence length, market type and site needs for a quotation.
Applications
Events & crowd control
Fast set-up barriers for concerts, sports and public events.
Pool & safety barriers
Temporary safety fencing around pools, trenches and hazards.
Storage & emergency use
Short-term enclosures for materials, plant and emergency zones.
Frequently Asked Questions
Which panel size do I need?
Choose the size used in your market: 2.4 × 2.1 m for Australia and New Zealand, 3.5 × 2.0 m for Europe and the UK, or 6 ft × 10 ft for North America.
Does temporary fence need to be dug into the ground?
No. Panels stand in plastic or concrete feet and are joined with clamps, so no digging or concrete is needed.
Is it hot-dip galvanized after welding?
Yes. Panels are welded first and then hot-dip galvanized, which coats the welds and frame for long reuse.
What accessories are available?
Feet, clamps, stay braces, walk-through and vehicle gates, and shade cloth or privacy screens.
Can I order a custom size?
Yes. Panel size, frame tube, mesh, wire diameter and finish can be made to your specification.
What information do you need for a quotation?
Market type or panel size, quantity or total fence length, feet type, accessories needed, and the destination port.
